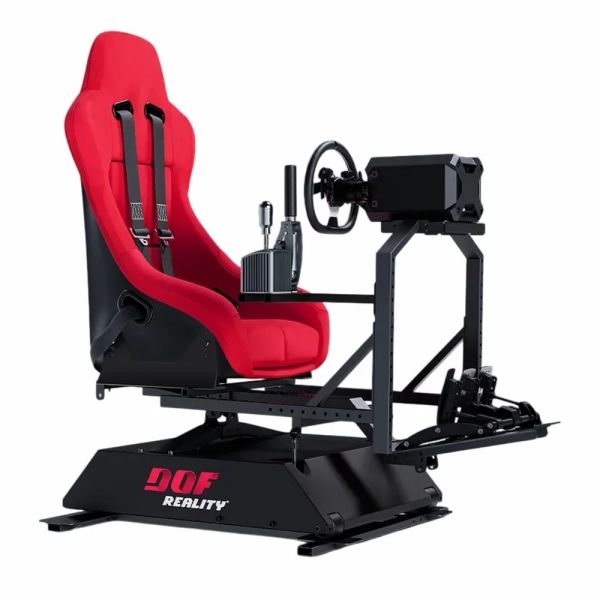

DOF Reality H3 motion platform: choose your sim racing or flight simulation experience
The DOF Reality H3 is a 3 DOF motion platform designed to deliver advanced immersion for both sim racing and flight simulation. Thanks to its motion system featuring Pitch, Roll and Yaw, it reproduces weight transfer, acceleration, braking, rear traction loss, body roll and attitude changes with impressive realism. The H3 range is available in two dedicated versions to match different user needs: the H3 HERO version focused on racing simulation and the H3R Flight Motion Platform optimized for flight simulation.
Two available versions: Racing or Flight Simulation
The H3 HERO is designed for sim racing enthusiasts, with a 3 DOF architecture capable of reproducing roll, pitch and rear yaw movements. It accurately simulates acceleration, grip loss, oversteer, understeer and drifting, giving the driver distinct sensations depending on the vehicle’s behavior.
The H3R Flight Motion Platform version is dedicated to flight simulation. Using its additional gearbox, It focuses on smoother and more progressive movements suited for civilian aircraft, commercial jets and helicopter simulators, helping reproduce attitude variations, banking movements and realistic flight sensations.
The H3R flight version is considered universal and also remains suitable for racing simulation use.
3 DOF motion platform with rear traction loss
The 3 DOF motion platform architecture of the H3 relies on three motion axes: Pitch, Roll and Yaw. The rear yaw movement allows realistic simulation of traction loss, drifting and weight transfer changes, making it especially immersive for rally, GT, drift and formula racing simulations.
Universal compatibility for sim racing, flight simulation and VR
The DOF Reality H3 platform is compatible with Windows, major simulation games and software, sim racing and aviation peripherals, as well as VR headsets. It works with SimRacingStudio, allowing users to adjust motion profiles according to the game, vehicle or aircraft being used.
Robust structure and scalable solution
Built around a professional-grade metal profile structure, the H3 supports up to 150 kg while maintaining excellent stability during intensive sessions. The platform also remains upgradeable and can later evolve toward the H6 range according to future needs.
Available options for your setup
The DOF Reality H3 motion platform can be customized with several accessories to create a setup perfectly suited to your needs, whether for sim racing, flight simulation or a hybrid configuration.
For aviation enthusiasts, a dedicated HOTAS Mount is available to easily install a joystick and throttle system. A central mounting position inspired by military aircraft cockpits is also available to improve immersion during flight simulation sessions.
The optional Cyber Cover structure helps protect the mechanical and electronic components of the motion simulator. Additional mounts are also available for screens, keyboards and mice to improve overall ergonomics and comfort.
Console users can also choose the Magix Box, providing compatibility with PlayStation and Xbox consoles depending on supported games. Different bucket seats are also available to customize comfort and support according to your preferences.
DOF Reality H3 specifications
- 3 DOF motion platform
- Available versions: H3 HERO or H3R Flight Motion Platform
- Degrees of freedom: Pitch, Roll and Yaw / Rear Traction
- Full platform movement: Yes
- Motion range: up to 20°
- Speed: up to 50 cm/s, 86°/s
- Torque: 25 N/m
- Acceleration: 0.7G T / 0.5G L
- Power consumption: 750 W peak
- Structure: professional-grade metal profiles
- Supported pilot weight: up to 150 kg
- Floor footprint: 100 x 150 cm, 60 cm height
- Box weights: 35 kg and 44 kg
- Compatibility: sim racing, flight simulation, VR
- Software: SimRacingStudio included
- Warranty: 2 year
- Available options: HOTAS Mount, Cyber Cover, monitor mounts, seats and accessories
- Upgradeable: H6 upgrade available
Laurent
Simracing reviewer
Aucune commentaire pour le moment
| SKU | DF-H3-CONFIG |
|---|---|
| Product Type | Actuators |
| Type de cockpit | Racing cockpit, Flight cockpit |
| Compatible Direct Drive | Yes |
| Compatible Motion Platforms | No |
| Cockpit materials | Steel |
| Position de conduite | Hybride |
| Seat Included | No |
| Handbrake & Gear Shifter support | Yes |
| Wheel Adjustment | Distance, Height |
| Quick Release | No |
| Paddles | No |
| Number of paddles | None |
| Pedal Adjustment | Angle |
| Max pressure | 100 kg |
| Dynamic module type | Actuators |
| Degrees of freedom | 3DOF |
| Power consumption | 0,75 kWh |
| Manufacturer software | Simracing Studio |
| Warranty | 2 ans |
| Compatibility | PC |
| Eco Taxe DEEE | €0.00 |
