A Force Feedback yoke base for flight simulation

The MOZA AY90 Force Feedback Yoke Base is designed to bring true force feedback to a PC flight simulator. It delivers 4.2 Nm of torque on the roll axis and 90 N of push-pull force on the pitch axis, with a full 180° range of rotation. Its 15-bit magnetic encoder, integrated cockpit controls and MOZA Cockpit software support allow the MOZA AY90 to reproduce aerodynamic forces, engine vibrations and aircraft response with greater accuracy.

MOZA AY90 Force Feedback yoke base for PC flight simulation

More responsive and realistic flight controls

Force feedback across the roll and pitch axes

The MOZA AY90 yoke base produces up to 4.2 Nm of torque on the roll axis and 90 N of push-pull force on the pitch axis. It can reproduce engine vibration, ground roll, trim resistance, autopilot engagement and stall buffet effects. The ±90° roll-axis travel provides 180° of total rotation, covering the full movement range expected from a flight yoke for both progressive corrections and more pronounced control inputs.

A 15-bit encoder with general aviation controls

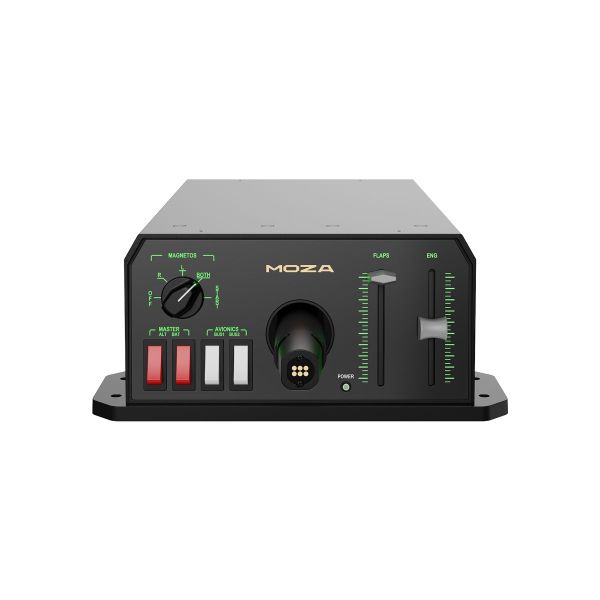

The 15-bit magnetic encoder accurately tracks every movement made through the MOZA AY90. The front panel also includes four rocker switches, two sliders and a five-way hat switch. Inspired by general aviation cockpit layouts, these controls can be reassigned through MOZA Cockpit. The RGB lighting supports 16.7 million colours and can display telemetry data such as engine RPM and throttle position.

A compact base for desks and aluminium-profile cockpits

The carbon-fibre-reinforced composite housing keeps the base relatively lightweight while providing a structure suitable for force feedback loads. The MOZA AY90 Force Feedback Yoke Base can be mounted to a desk using the two included clamps or installed on an aluminium-profile flight simulator cockpit. Its aluminium-alloy quick release allows a compatible yoke to be removed or replaced without tools. Dedicated mounting points on top of the base can also support gauges, displays and other accessories with suitable brackets.

MOZA AY90 with flight controls, RGB lighting and cockpit mounting options

MOZA AY90 Force Feedback Yoke Base specifications

Force Feedback yoke base for PC
Roll-axis torque: 4.2 Nm
Pitch-axis push-pull force: 90 N
Roll-axis travel: ±90°
Total rotation range: 180°
Motor encoder: 15-bit magnetic encoder
Five-way hat switch: 1
Rocker switches: 4
Slider switches: 2
Fully remappable controls
Configuration through MOZA Cockpit
RGB lighting: 16.7 million colours
Telemetry-based lighting effects
Quick release: aluminium alloy
Housing: carbon-fibre-reinforced composite
Button caps: ABS
Desk mounting with included clamps
Compatible with aluminium-profile cockpits
Top mounting points for accessories
Compatible with X-Plane
Compatible with Microsoft Flight Simulator
Compatible with DCS World and War Thunder
Power input: 12 V / 6 A
Dimensions: 325 × 252 × 111 mm
Weight: 4.5 kg
Included accessories: power adapter, USB cable, user manual, sticker and 2 desk clamps
